Connectors Reference Guide

This guide can help determine what type of connector is on your antenna, amplifier, or cable. Adapters are available to convert from most of these connections types to the Antennas and Amplifiers available from 3gstore.com. If you need any help determining what adapters you need feel free to contact us.

CONNECTOR IMAGE
click image to view full size
FME/Female
found on many antennas and RG58 or LMR240 cables
FME-Female

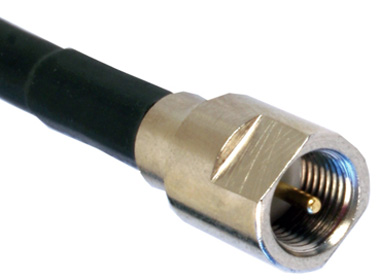

FME/Male
found on antenna adapter cables and many amplifiers
FME-Male
N/Female
found on many antennas and amplifiers
N-Female
N/Male
found on LMR400/LMR600 ultra-low-loss cable
N-Male

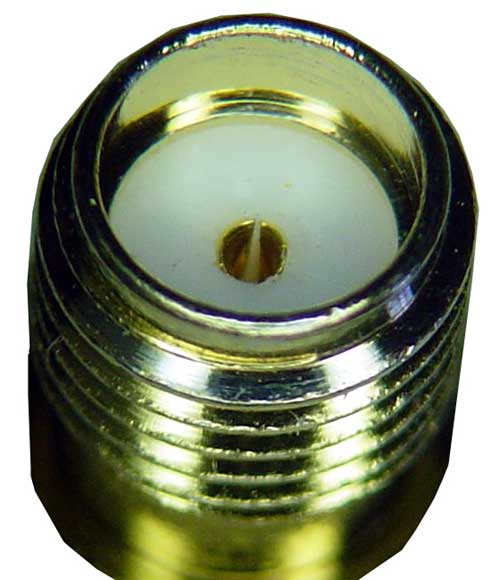

SMA/Female
found on some amplifiers (like the Wilson Sleek) and embedded devices (like the Cradlepoint modem caps)
SMA-Female
SMA/Male
found on some antenna cables
SMA-male
RP (Reverse Polarity) SMA/Female
found on many routers as a WiFi antenna connector
RP SMA-Female
RP (Reverse Polarity) SMA/Male
found on some cables, most often to connect to the WiFi antenna port on a router
RP SMA-male

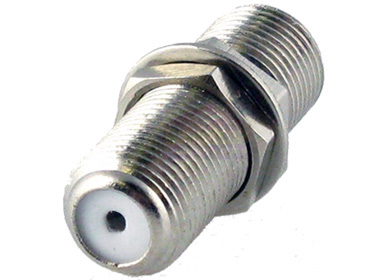

F/Female
found on some 75ohm amplifiers (like the Wilson DB Pro)
F-Female Connector
F/Male
found on RG6 cabling (standard TV/satellite cable)
F-Male

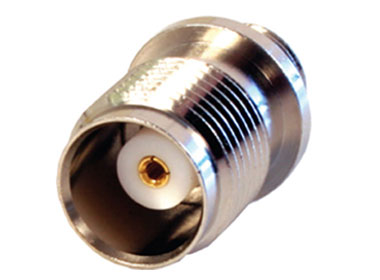

TNC/Female
found on some amplifiers and embedded devices
TNC-Female
TNC/Male
found on some antenna cables
TNC-Male

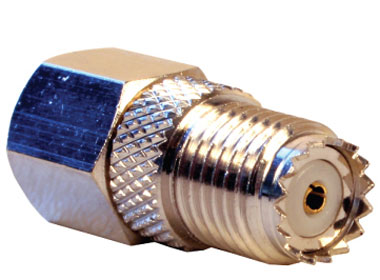

mini UHF/Female
not commonly found on cellular amplifiers/antennas
mini UHF-Female
mini UHF/Male
not commonly found on cellular amplifiers/antennas
mini UHF-Male

Still not sure which connector you have? The side-by-side size comparison below may help:

connector comparison
click for larger view

left to right: SMA/Female, SMA/Male, FME/Male, FME/Female, N/Male, N/Female, F/Male, F/Female, TNC/Male, TNC/Female, mini UHF/Male, mini UHF/Female, RP-SMA/Male, RP-SMA/Female
