Sierra Wireless AirLink Raven RV50 Industrial LTE Gateway

In Stock

Item Number: 6424
Quantity:
Have a large deployment?
Request a Quote

Price:

$589.00

Lease (?):

$20.14/month

Sales Tax (?):

$0.00 tax collected outside of Illinois

Cellular antennas are NOT included - you must select an antenna option here to utilize the embedded cellular modem in the router.
Select Cellular Antennas (required) - details
This device only includes the hardwire DC power supply. If you need an AC or vehicle power supply, you can add one here.
Add a Power Adapter (optional) - details
The ES, GS, LS, MP, and RV series routers include a 3-year warranty which can be extended to 5 years if desired.

There is a setup fee of $10 for all warranty/license items (you will see this fee in your cart at checkout). If you are purchasing multiple warranties/licenses, you will only be charged the fee ONCE, and if you order more than 5, this fee is WAIVED.
Extended Warranty (optional) - details
The AirLink Management Service (ALMS) is a secure cloud-based device management application that makes it easy to deploy, monitor and upgrade any number of wireless devices remotely. Access to ALMS is FREE for users with 15 or fewer devices! You DO NOT need to add a license to use ALMS if you are managing 15 or fewer devices. If you need to manage more than 15 devices, you will be required to purchase a license for each device. (NOTE: If you are subscribed to AirLink Support, you do not need to buy ALMS separately - it is included with AirLink Support Classic and Preferred).
AirLink Management (16+ devices only) - details
AirLink Support is an additional support option that can be added for one, three or five years. AirLink Support also INCLUDES access to ALMS!

PREFERRED: Our highest-value offering, Preferred AirLink Support, is developed for customers with large mission-critical applications that need the highest level of support available. Combining responsive customer support with cloud-based network management tools, extended hardware support and on-going enterprise network support, Preferred AirLink Support is a comprehensive offering delivered by Sierra Wireless’s experts. The 5-year preferred license also extends the warranty for 5 years (the standard warranty is 3 years)!

CLASSIC: Classic AirLink Support delivers the same high-level of customer support and access to the same network management tools as Preferred AirLink Support, but is designed for organizations that have smaller, less complex environments, or don’t require 24/7 access or extended hardware support. Delivered by the same team of Sierra Wireless experts, AirLink Support Classic delivers exceptional value.

There is a setup fee of $10 for all warranty/license items (you will see this fee in your cart at checkout). If you are purchasing multiple warranties/licenses, you will only be charged the fee ONCE, and if you order more than 5, this fee is WAIVED.
AirLink Support (optional) - details

Frequently Purchased Together »

Sierra Wireless AirLink Raven RV50
Sierra Wireless AirLink Raven RV50 Industrial LTE Gateway
+ 3Gstore 2-Outlet IP Switch for Remote Automation/Rebooting

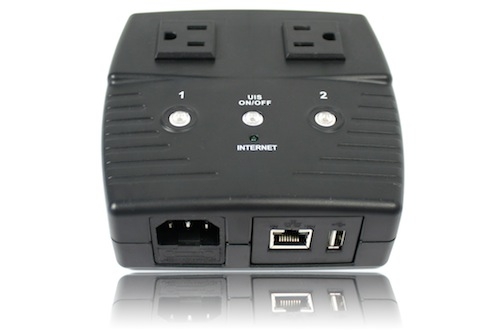

3Gstore 2-Outlet IP Switch for Remote Automation/Rebooting
$119.99 $89.99
= $678.99
Add to Cart
Monitor and reboot your router remotely!

Sierra Wireless AirLink Raven RV50
Sierra Wireless AirLink Raven RV50 Industrial LTE Gateway
+ AC Power Supply for Sierra ES/GX/LS/MP/RV and CloudGate
AC Power Supply for Sierra ES/GX/LS/MP/RV and CloudGate
= $609.00
Add to Cart
Only the hardwire power harness is included!


This router features an embedded modem and you will need a SIM card with active service from a compatible provider to use it. The RV50 has a standard 2FF SIM slot - if you plan to use a microSIM, you'll need the micro-to-standard SIM adapter).

With the AirLink Raven RV50, businesses can set up wireless connectivity in almost any remote location. Mobile broadband is needed in numerous places to meet enterprise needs, but not all of these places are ideal for a traditional router. ATMs, vehicles, digital signs and other applications are often too small or do not have enough power for a full networking setup, or the environmental conditions may be too harsh for a standard router. This industrial LTE gateway is a compact networking solution that uses less power than similar products and has a ruggedized enclosure for large deployments in challenging conditions.

The Raven RV50 gateway has a wireless modem embedded that is compatible with nearly every 3G/4G/LTE North American network. All you need is an active SIM card to experience blazing fast data transfer in M2M applications. Based on area coverage, you can make it a Verizon, Sprint, Rogers or AT&T wireless gateway, just to name a few. This fully functional 4G gateway runs on less than a watt of power — the only one in the industry that does so. With its 2G power consumption and low-maintenance design, the Sierra Wireless RV50 is optimal for businesses that use battery or solar power installations to reduce costs.

Managing and configuring your AirLink RV50 is simple using their cloud-based AirLink Management Service (ALMS). This top-ranked management solution allows users to monitor signal strength, location, voltage and other important network variables. By using up to five concurrent VPN sessions, your intelligent data processing and gathering will be unbreakably secure. Using LTE connectivity for your industrial gateway is simpler and often more cost-effective than using traditional wired or Wi-Fi networking technology and provides the advanced features for your business to thrive. By ordering from 3Gstore, you will receive a year of free tech support and the high-end service customers expect from our mobile broadband experts.

Features:

  • Internet Connections Supported: 1 Embedded 3G/4G IMPORTANT: you will need a 2mm Hex L-wrench (not included) to access the SIM slot on the router!
  • Networks Supported for Embedded Modem: LTE Bands 2,4,5,13,17,25 with Fallback to WCDMA/EVDO/CDMA/GSM/EDGE/GPRS (this includes virtually all networks in North America)
  • WiFi Standard: N/A
  • WiFi Range: N/A
  • Ports: 1 Ethernet, 1 RS-232 serial
  • Power supply: Hardwire DC power supply; AC power supply and cigarette lighter power supply are available separately
  • Size: 4.69" x 1.34" x 3.45"

Tech Support and 24/7 Support Portal Access Included: Our expert tech support is included for free with your purchase. You'll also have 24/7 access to our online Support Portal (which includes step-by-step guides, tip sheets, documentation, manuals, and more)! You can view all the support items you'll have access to by clicking on the "Support" tab above.


BEST-IN-CLASS REMOTE MANAGEMENT
The Raven RV50 can be remotely managed by AirLink Management Service (ALMS)—the cloud management solution ranked “best-in-class” by ABI Research. ALMS supports over-the-air device registration, configuration and software updates. Variables such as signal strength, network technology, location, temperature and voltage can be remotely monitored to help maintain connectivity. Dashboards display up-to-date views of the entire deployment, and custom reports can be set-up to monitor critical events and prevent downtime.

INSTANT INTEGRATION
The Raven RV50 is designed to install directly into existing infrastructure. Offering both serial and Ethernet connectivity, it can be used to connect devices like PLCs and RTUs, and transmit a wide variety of protocols like Modbus/DNP3 with ease. The Raven RV50 can also be integrated directly into existing management systems via SNMP.

INTELLIGENCE AT THE EDGE
The Raven RV50’s Application Framework (AAF) provides programmability for leading-edge on-board data gathering, real-time processing and integration with the Sierra Wireless IoT Acceleration Platform. Processing data from connected devices, and making decisions at the edge can all be realized with the Raven RV50.

SECURE INDUSTRIAL COMMUNICATIONS
The Raven RV50 is loaded with features to secure critical data. It supports secure communications to multiple back-end systems by providing up to five concurrent VPN sessions. Remote authentication management allows enterprise-grade systems to manage access to devices in the field. Finally, port filtering and trusted IP protect the devices connected to the Raven RV50 from unwanted access.

Benefits:

  • Provides LTE broadband connectivity to remote locations and in harsh environments
  • Ultra-low power consumption, ideal for solar or battery powered installations
  • Maximizes longevity of deployed equipment and protects investments with LTE
  • Improves ROI by supporting multiple network operators without additional hardware costs
  • Powerful remote management solution
  • Built-in, class-leading voltage transient protection provides superior reliability and continuous operation
  • Proven reliability and over 1 million AirLink gateways deployed
  • Industry leading warranty includes support, software updates and advance replacement

Specs:

  • Cellular WAN
    • Carrier Approvals (pending): Verizon, AT&T, Sprint, T-Mobile USA, Rogers, Bell, Telus Ÿ
    • Supported Frequency Bands
      • LTE: 1900(B2), AWS(B4), 850(B5), 700(B13), 700(B17), 1900(B25)
      • WCDMA: 2100(B1), 1900(B2), AWS(B4), 850(B5), 900(B8)
      • EV-DO/CDMA: 800(BC0), 1900(BC1), 1700(BC10)
      • GSM/GPRS/EDGE: Quad-band
    • Industry Approvals: FCC, IC, PTCRB
    • Software defined radio with automatic network operator switching
    • Dual SIM Interfaces
  • Host Interfaces
    • 10/100 Base-T RJ45 Ethernet port
    • RS-232 Serial Port on DB-9 Connector
    • USB 2.0 Micro-B Connector
    • 3 SMA antenna connectors (Primary, Secondary/Diversity, GPS)
    • Active GPS antenna support
  • Input/Output
    • Configurable I/O pin on power connector
      • Digital Input ON Voltage: 2.7 to 36 VDC
      • Configurable Pull-up for dry contact input
      • Digital Open Collector Output > sinking 500 mA
      • Analog Input: 0.5-36 VDC
  • LAN (Ethernet/USB)
    • DNS, DNS Proxy
    • DHCP Server
    • IP Passthrough
    • VLAN
    • Host Interface Watchdog
    • PPPoE
  • Serial
    • TCP/UDP PAD Mode
    • Modbus (ASCII, RTU, Variable)
    • PPP
    • DNP3 Interoperability
  • Network and Routing
    • Network Address Translation (NAT)
    • Port Forwarding
    • Host Port Routing
    • NEMO/DMNR
    • VRRP
    • Reliable Static Route
    • Dynamic DNS
  • VPN
    • IPsec, GRE, and SSL VPN Client
    • Up to 5 concurrent tunnels
    • Split Tunnel
    • Dead Peer Detection (DPD)
    • Multiple Subnets
  • Events Engine
    • Custom event triggers and reports Configurable interface, no programming
    • Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage
    • Report Types: RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
    • Event Actions: Drive Relay Output
  • Security
    • Remote Authentication (LDAP, RADIUS and TACACS+)
    • DMZ
    • Inbound and Outbound Port filtering
    • Inbound and Outbound Trusted IP
    • MAC Address Filtering
    • PCI compatible
  • Satellite Navigation (GNSS)
    • 12 Channel GPS and GLONASS Receiver
    • Acquisition Time: 1s Hot Start
    • Accuracy:
    • Tracking Sensitivity: -145dBm
    • Reports: NMEA 0183 V3.0, TAIP, RAP, XORA
    • Multiple Redundant Servers
    • Reliable Store and Forward
  • AirVantage Management Service
    • Secure cloud-based device management application
    • Remote provisioning and airtime activation
    • Device configuration and template management
    • Configurable monitoring and alerting
    • Fleet wide firmware upgrade delivery
  • Gateway Management Interfaces
    • ALMS
    • Local web user interface
    • AT Command Line Interface (Telnet/SSH/Serial)
    • SMS Commands
    • SNMP
  • Management System Access/Security
    • Remote authentication (LDAP, RADIUS and TACACS+)
  • Application Framework
    • ALEOS Application Framework (AAF)
    • LUA Scripting Language
    • Eclipse-based IDE
    • Integrated with AirVantage
  • Power
    • Input Voltage: 7 to 36 VDC
    • LTE Idle Power: 900 mW (75 mA @ 12 VDC)
    • Standby Mode Power: 53 mW (4.4 mA @ 12 VDC) triggered on low voltage, I/O or periodic timer
    • Low voltage disconnect to prevent battery drain
    • Built-in protection against voltage transients including 5 VDC engine cranking and +200 VDC load dump
    • Ignition Sense with time delay shutdown
    • Configurable features and ports to optimize power consumption
  • Environmental
    • Operating Temperature: -30°C to +70°C / -22°F to +158°F
    • Storage Temperature: -40°C to +85°C / -40°F to +185°F
    • Humidity: 90% RH @ 60°C
    • Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
    • IP64 rated ingress protection
  • Dimensions
    • 119 mm x 34 mm x 85 mm (94 mm including connectors)
  • Industry Certifications
    • Safety: IECEE Certification Bodies Scheme (CB Scheme) UL 60950
    • Vehicle Usage: E-Mark (2009/19/EC), ISO7637-2
    • Hazardous Environments: Class 1 Div 2
    • Environmental: RoHS, REACH, WEEE
  • Support and Warranty
    • 3 year standard warranty
    • Optional additional 2 year warranty extension
    • Unrestricted device software upgrades
    • 1-day Accelerated Hardware Replacement available through participating resellers
  • Minimum Requirements
    • SIM card with active 3G/4G mobile broadband plan from a compatible provider
    • 2mm Hex L-wrench (required to access the SIM card slot)
